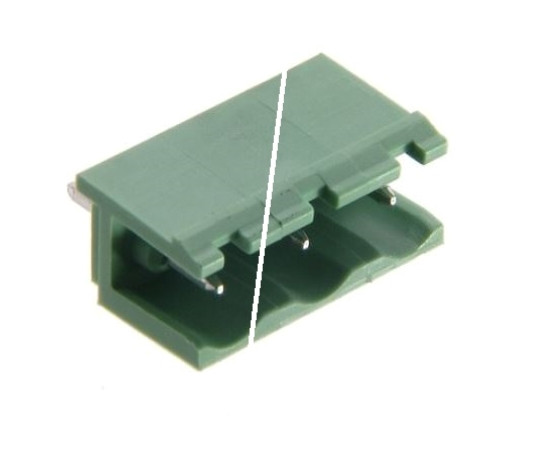

XY2500V-M(7.5)-04P XINYA Terminal block

Symbol Micros: Z TLPH400v-04p

29394

Z TLPH400v-04p

Contractor Symbol:

Case : Rys.TLPH400v-04p

Datasheet

Technical drawing Add to favourites

04 poles; pitch: 7.5mm; height: 12.2mm; green colour, open, 300V; 15A; straigth, mates with TLPS 7.5mm; solder pin: brass, tin plated, eqiv. GMSTBV 2,5/ 4-G; 1766479; 2EDGV-7.5-04P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	12,2mm
Number of pins:	4
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm

All parameters

Manufacturer:: XINYA Manufacturer part number: XY2500V-M 4P RoHS Case style: Rys.TLPH400v-04p

In stock:

170 pcs.

Quantity of pcs.	5+	20+	100+	900+	4500+
Net price (EUR)	0,2243	0,1068	0,0603	0,0437	0,0408

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/900 Quantity (multiple: 1)

- +

• Parameters

Height:	12,2mm
Number of pins:	4
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm
