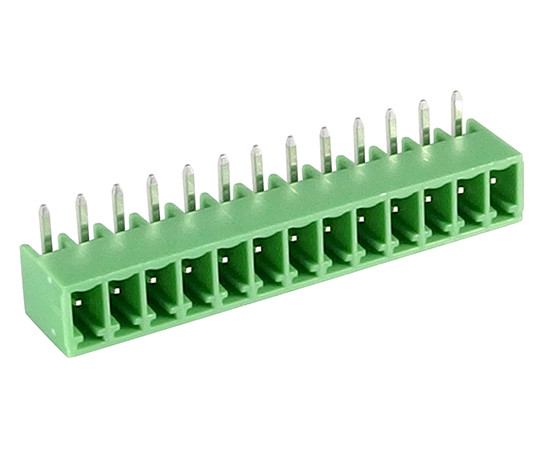

15EGTRC-3.5-13P-14-00AH GOLTEN Terminal block

Symbol Micros: Z TLPHC001r-13p-GT

116906

Z TLPHC001r-13p-GT

Contractor Symbol:

Case : Rys.TLPHC001r-13-GT

Datasheet

Technical drawing Add to favourites

13 poles; pitch: 3.5mm; height: 7.2mm; green color, 300V; 8A, angled, mates with TLPS001 / TLPSZ001 3.5mm solder pin: brass, tin plated; eqiv. MC 1,5/13-G-3,5; 1844320; 15EDGRC-3.5-13P

Parameters

Height:	7,2mm
Number of pins:	13
Terminal pitch:	3,5mm
Colour:	Green
Manufacturer:	GOLTEN

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	7,2mm
Number of pins:	13
Terminal pitch:	3,5mm
Colour:	Green
Manufacturer:	GOLTEN
