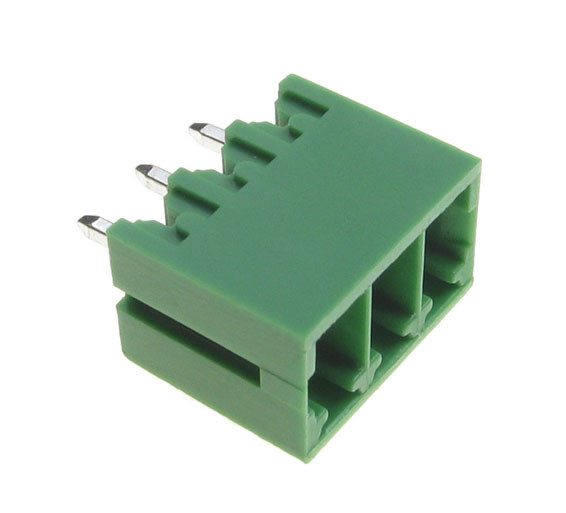

XY2500V-F(3.5)-03P XINYA Terminal block

Symbol Micros: Z TLPHC001v-03p
Contractor Symbol:
Case : Rys.TLPHC001v-03p
Technical drawing Add to favourites
3 poles; pitch: 3.5mm; height: 9.1mm; green color, 300V; 8A, straight, mates with TLPS001 / TLPSZ001 3.5mm solder pin: brass, tin plated; eqiv. MCV 1,5/ 3-G-3,5; 1843619; 15EDGVC-3.5-03P
Parameters
Height: 9,1mm
Number of pins: 3
Terminal pitch: 3,5mm
Colour: Green
Manufacturer: XINYA


Item available on request
Height: 9,1mm
Number of pins: 3
Terminal pitch: 3,5mm
Colour: Green
Manufacturer: XINYA
