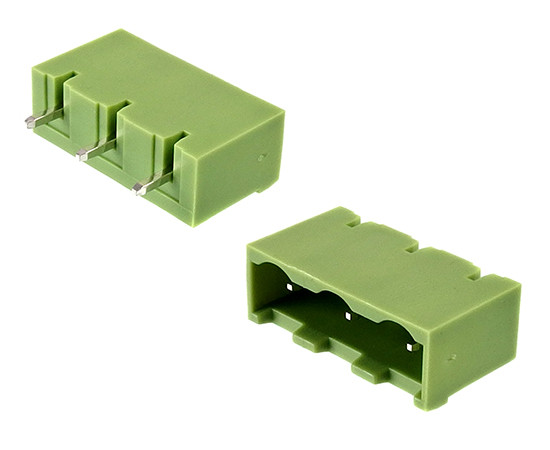

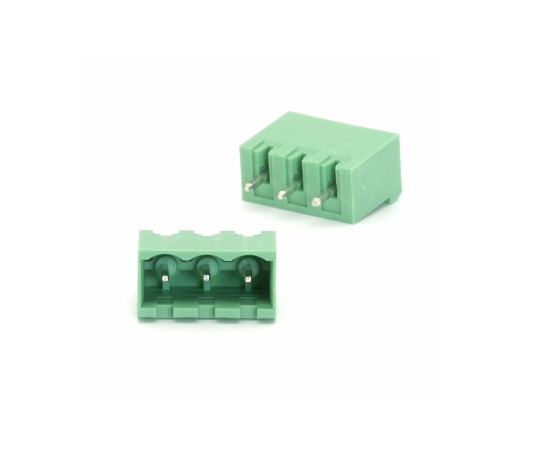

XY2500V-P(7.50)-03P XINYA Terminal block

Symbol Micros: Z TLPHC400v-03p

44227

Z TLPHC400v-03p

Contractor Symbol:

Case : Rys.TLPHC400v-03p

Datasheet

Technical drawing Add to favourites

03 poles; pitch: 7.5mm; height: 12.2mm; green colour, close, 300V; 15A; straigth, mates with TLPS 7.5mm; solder pin: brass, tin plated, eqiv. GMSTBVA 2,5/ 3-G; 1766673; 2EDGVC-7.5-03P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Height:	12,2mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm

All parameters

Manufacturer:: XINYA Manufacturer part number: XY2500V-P 3(7.50)-03P RoHS Case style: Rys.TLPHC400v-03p Datasheet

In stock:

2463 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2024	0,0810	0,0472	0,0393	0,0368

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/1000 Quantity (multiple: 1)

- +

• Parameters

Height:	12,2mm
Number of pins:	3
Manufacturer:	XINYA
Colour:	Green
Terminal pitch:	7,5mm
