XY2500F-G(3.5)-06P XINYA

Symbol Micros: Z TLPS001v-06p

18774

Z TLPS001v-06p

Contractor Symbol:

Case : Rys.TLPS001v-06p

Datasheet

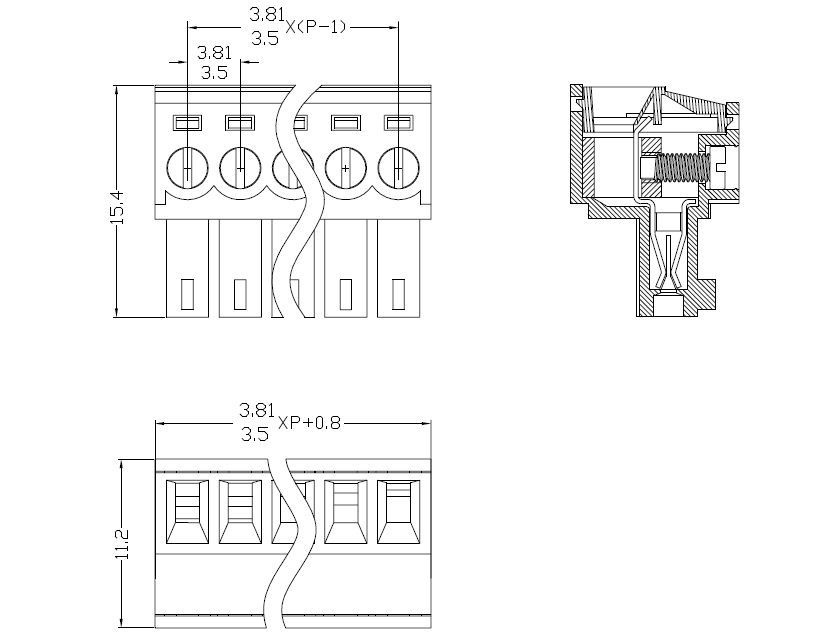

Technical drawing Add to favourites

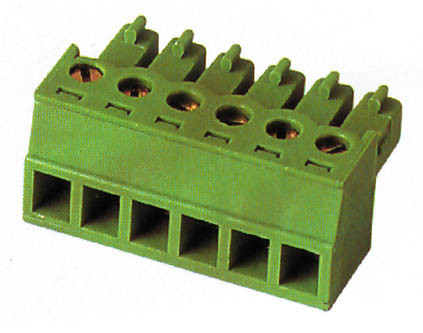

6 poles, pitch 3.5mm,height 15.4mm, green color,clamp:phosphor bronze,tin plated, 300V, 8A, 28-16AWG, mates with TLPHC001 3.5mm wire cage: brass,nickel plated, screw: steel, zinc plated

Parameters

Height:	15,4mm
Number of pins:	6
Terminal pitch:	3,5mm
Colour:	Green
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	15,4mm
Number of pins:	6
Terminal pitch:	3,5mm
Colour:	Green
Manufacturer:	XINYA
