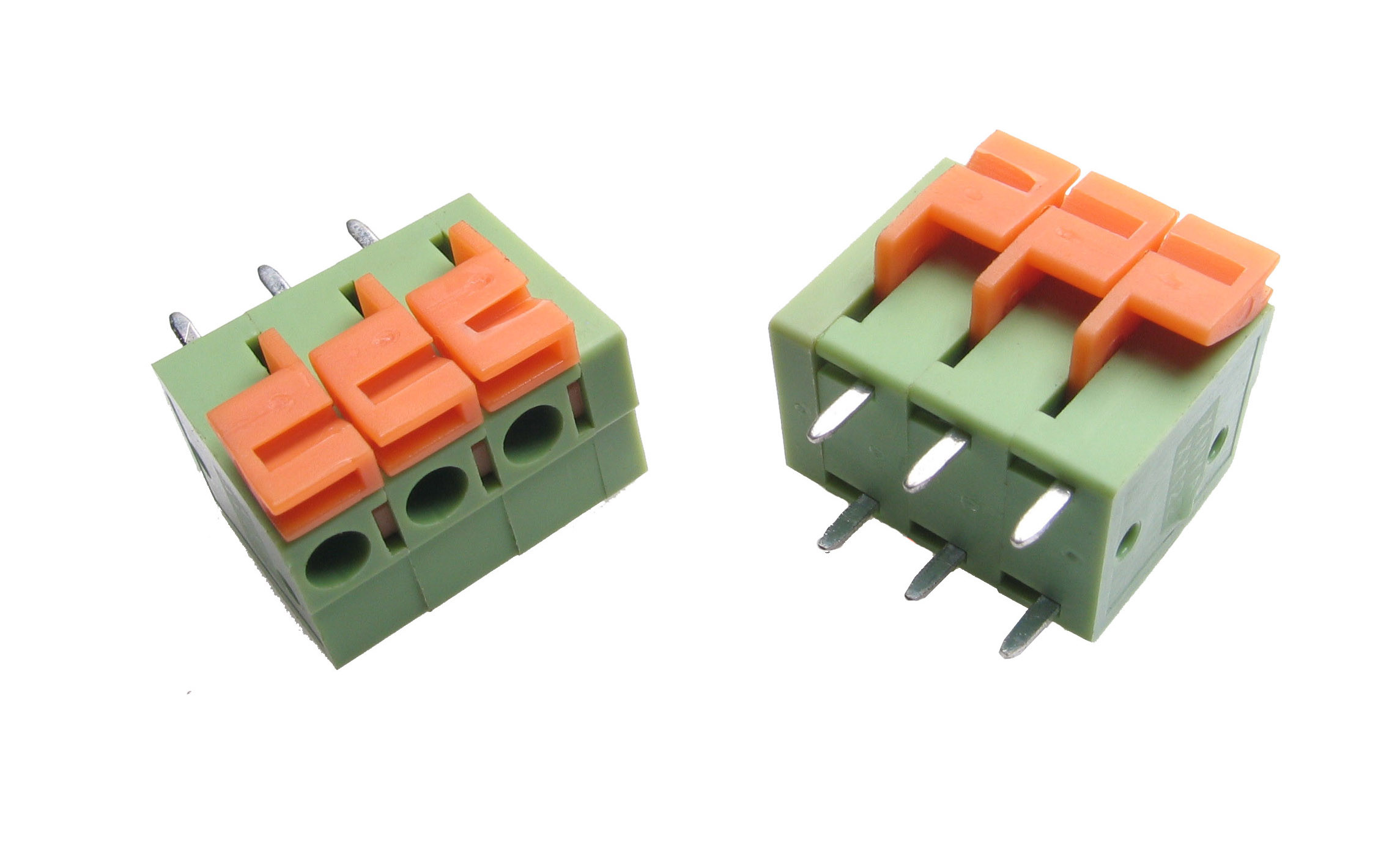

XY122V-5.08-03P XINYA Terminal block

Symbol Micros: Z TLZ32v-03p

22746

Z TLZ32v-03p

Contractor Symbol:

Case : Rys.TLZ32v-03p

Datasheet

Technical drawing Add to favourites

3 poles, pitch 5.08mm, height 14mm, green colour 250V, 10A, 14-22AWG; straigth, eqiv. Z DG142V-5.08/3

Parameters

Height:	14,0mm
Terminal pitch:	5,08mm
Number of pins:	3
Colour:	Green
Manufacturer:	XINYA

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	14,0mm
Terminal pitch:	5,08mm
Number of pins:	3
Colour:	Green
Manufacturer:	XINYA
