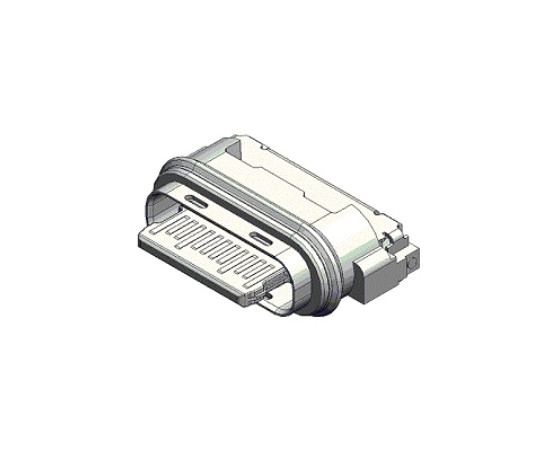

DX07W024JA2R1000 JAE USB Connector

Symbol Micros: Z USB-DX07W024JA2R1000

276014

Z USB-DX07W024JA2R1000

Contractor Symbol:

Case : Rys.USB-DX07W024JA2R1000

Datasheet

Technical drawing Add to favourites

USB 3.1, type C (Gen 2, Superspeed+),24pins, 0.25A, 1.25A, 5A, 6.25A, horizontal Montage: Board Edge, Surface Mount, Right Angle, Protection: IPX8 - Waterproof

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type:	USB C
Version:	2.0
Connector:	Socket
Mounting:	SMD + THT
Spatial orientation:	Horizontal
Operating voltage:	20V

All parameters

Manufacturer:: JAE Manufacturer part number: DX07W024JA2R1000 RoHS Case style: Rys.USB-DX07W024JA2R1000 Datasheet

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	2,1372	1,7829	1,5781	1,4815	1,4240

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Type:	USB C
Version:	2.0
Connector:	Socket
Mounting:	SMD + THT
Spatial orientation:	Horizontal
Operating voltage:	20V
