DS1105-01-BBN0 CONNFLY USB Connector

Symbol Micros: Z USBw-mBc-3

120912

Z USBw-mBc-3

Contractor Symbol:

Case : Rys.USBw-mBc-3

Datasheet

Technical drawing Add to favourites

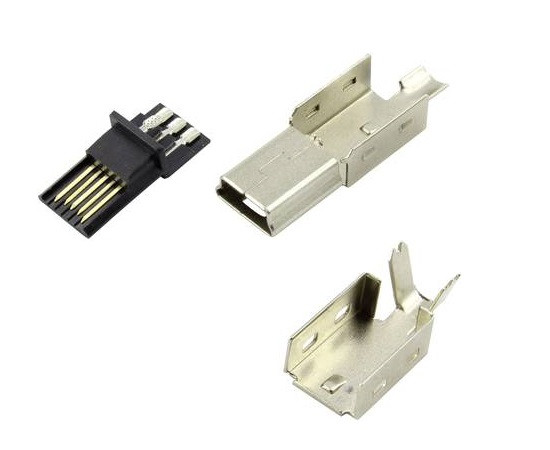

plug; USB type mini B, black insulator, solder type; 5 pin; 30; 0,5A; eqiv: MUSB-W5P

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type:	USB B mini
Version:	USB 2.0
Current:	0,5A
Connector:	Plug
Mounting:	Soldering
Spatial orientation:	Straight
Operating voltage:	30V

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1105-01-BBN0 RoHS Case style: Rys.USBw-mBc-3

In stock:

950 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,7201	0,4555	0,3589	0,3267	0,3129

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1105-01-BBN0 RoHS Case style: Rys.USBw-mBc-3

In stock:

2000 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,7201	0,4555	0,3589	0,3267	0,3129

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000 Quantity (multiple: 1)

- +

• Parameters

Type:	USB B mini
Version:	USB 2.0
Current:	0,5A
Connector:	Plug
Mounting:	Soldering
Spatial orientation:	Straight
Operating voltage:	30V
