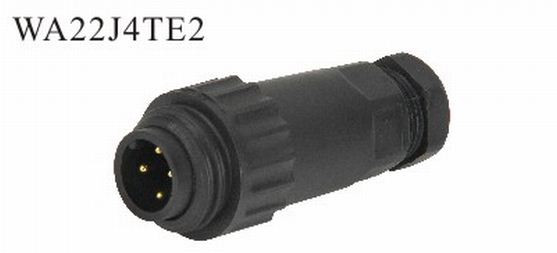

WA22J4TE2I WEIPU Industrial connctor

Symbol Micros: Z WA22J4TE2-06

75669

Z WA22J4TE2-06

Contractor Symbol:

Case : Rys.Z WA22J4TE2I

Datasheet

Technical drawing Add to favourites

Male connector; plug; circular; layout 3pin+PE; cable diameter 6mm screwed; for cable; IP67; 400V; 16A; screw termination

Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug

All parameters

Manufacturer:: WEIPU CONNECTOR Manufacturer part number: WA22J4TE2-6MM RoHS Case style: Rys.Z WA22J4TE2I Datasheet

In stock:

50 pcs.

Quantity of pcs.	1+	3+	10+	30+	100+
Net price (EUR)	3,5495	3,1548	2,9190	2,7999	2,7298

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug
IP rating:	IP67
Type of connector:	Male
