WA22K4TK2II WEIPU Industrial connctor

Symbol Micros: Z WA22K4TK2-12

117196

Z WA22K4TK2-12

Contractor Symbol:

Case : Rys.Z WA22K4TK2II

Datasheet

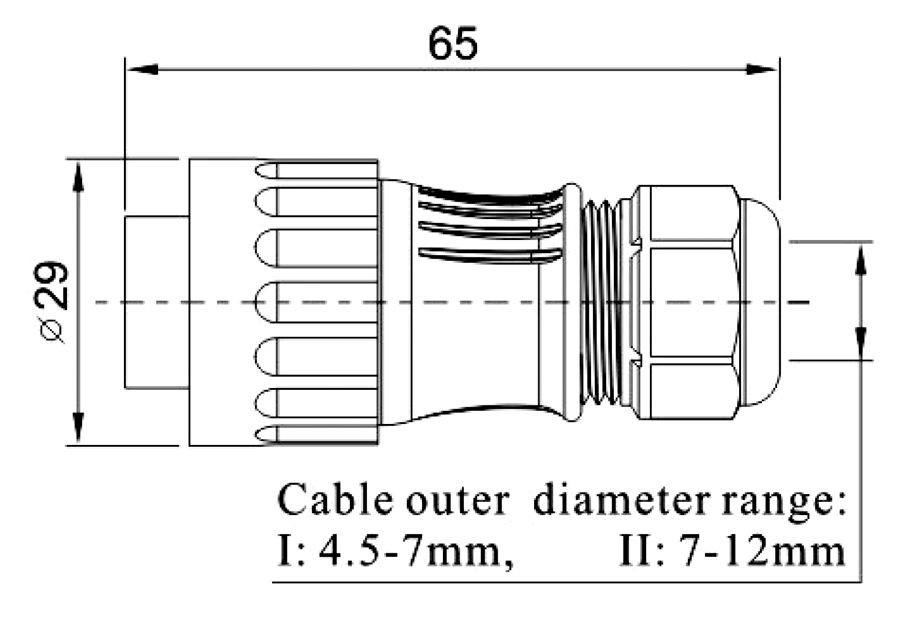

Technical drawing Add to favourites

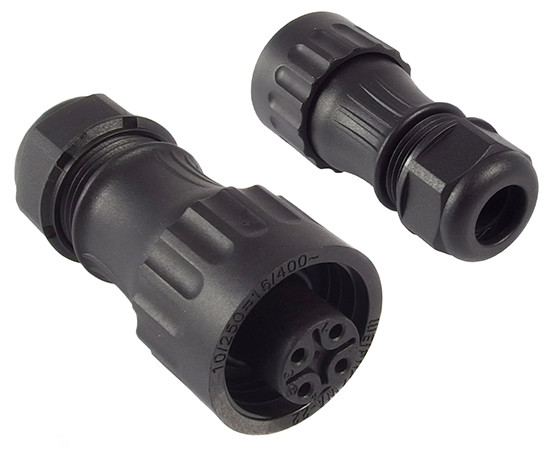

Female connector, circular, layout 3pin+PE, cable diameter 7-12mm screwed, for cable, IP67, 400V, 16A, screw termination

Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Series:	WA22
Number of pins:	3
Current:	16A
Operating voltage:	400V
Manufacturer:	WEIPU
Mounting:	Screw clamp
Connector:	Plug
IP rating:	IP67
Type of connector:	Female
