WDCg3713smd

Symbol Micros: Z WDCg3713smd

125228

Z WDCg3713smd

Contractor Symbol:

Case : Rys.WDCg3713smd

Technical drawing Add to favourites

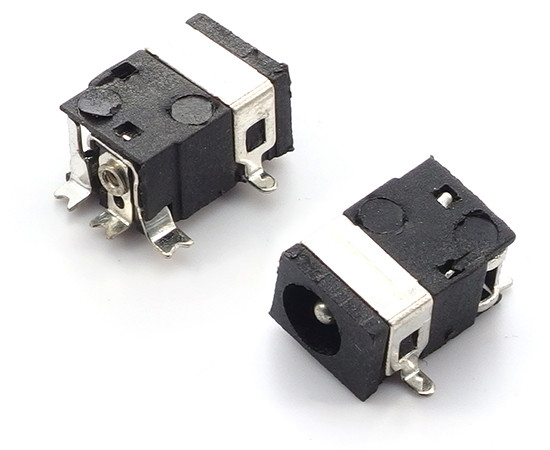

Power socket DC Φ3,7x1,3mm Rating 30VDC, 0.5A, life test 5000 cycles

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Current:	0,5A
Operating voltage:	30V
Plug outside diameter:	3,7mm
Plug inside diameter:	1,3mm
Mounting:	SMD
Type of connector:	Male
Connector:	Socket

All parameters

Manufacturer:: CONNECTAR Manufacturer part number:   Case style: Rys.WDCg3713smd

In stock:

894 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3077	0,1633	0,1264	0,1167	0,1118

Add to comparison tool Add inquiry (RFQ)

Packaging:
1000 Quantity (multiple: 1)

- +

• Parameters

Current:	0,5A
Operating voltage:	30V
Plug outside diameter:	3,7mm
Plug inside diameter:	1,3mm
Mounting:	SMD
Type of connector:	Male
Connector:	Socket
