WDCG5521

Symbol Micros: Z WDCg5521

13514

Z WDCg5521

Contractor Symbol:

Case : Rys3.01b

Datasheet

Technical drawing Add to favourites

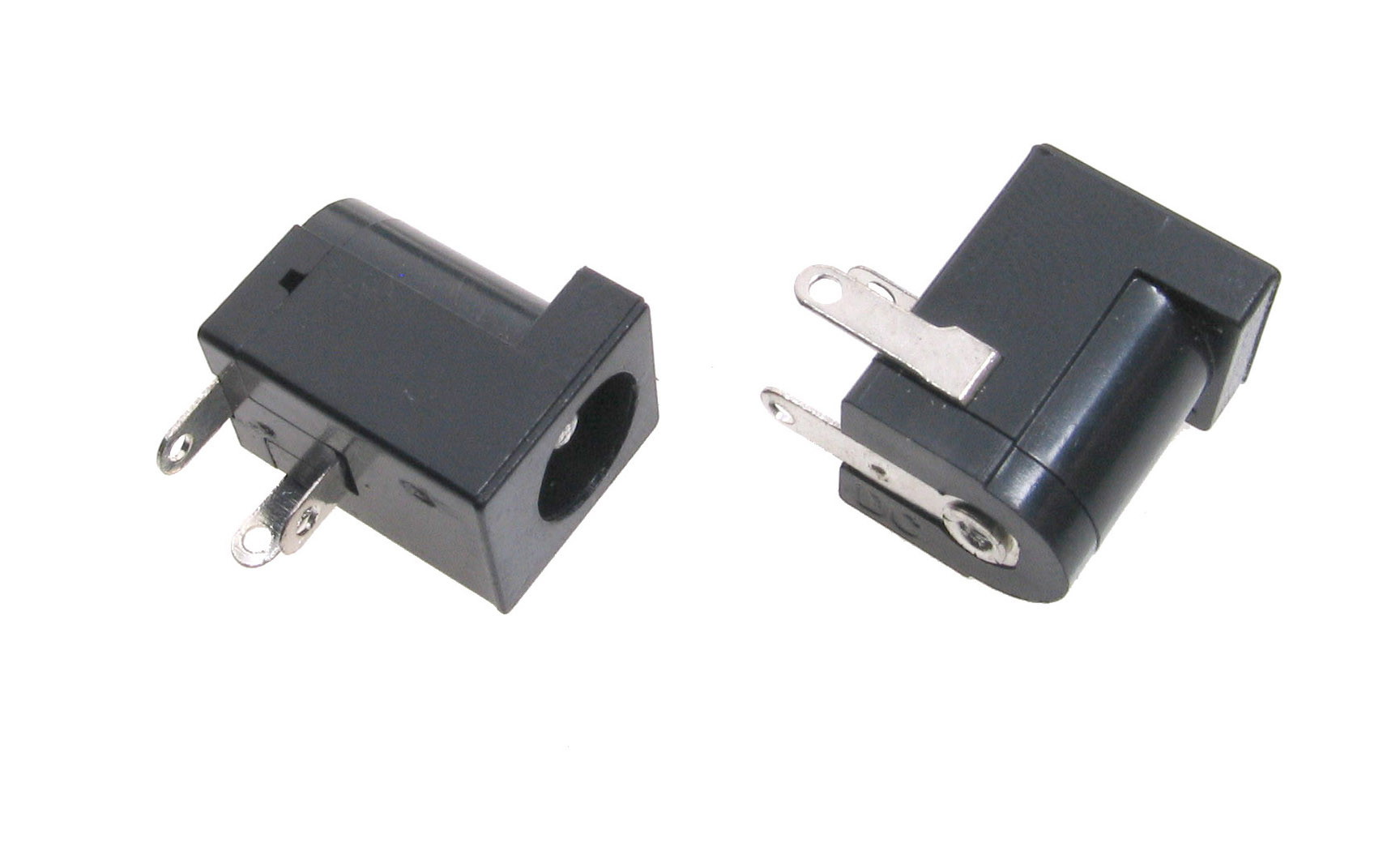

Power socket DC Φ5,5x2,1mm PCB Rating 30VDC, 3.5A, life test 5000 cycles

Parameters

Current:	3,5A
Operating voltage:	30V
Plug outside diameter:	5,5mm
Mounting:	THT
Plug inside diameter:	2,1mm
Type of connector:	Male
Connector:	Socket

All parameters

Manufacturer:: TACTRONIC Manufacturer part number:   Case style: Rys3.01b Datasheet

In stock:

5316 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2641	0,1330	0,0802	0,0634	0,0585

Add to comparison tool Add inquiry (RFQ)

Packaging:
500/9000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-15

Quantity of pcs.: 20000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-07-30

Quantity of pcs.: 9000

• Parameters

Current:	3,5A
Operating voltage:	30V
Plug outside diameter:	5,5mm
Mounting:	THT
Plug inside diameter:	2,1mm
Type of connector:	Male
Connector:	Socket
