WDCG5525

Symbol Micros: Z WDCg5525

13540

Z WDCg5525

Contractor Symbol:

Case : Rys3.01c

Datasheet

Technical drawing Add to favourites

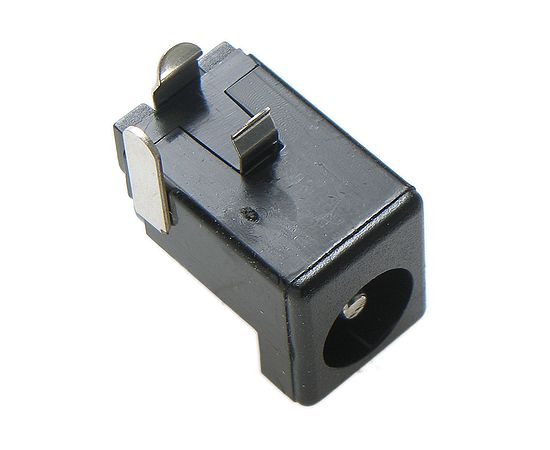

Power socket DC Φ5,5x2,5mm PCB Rating 30VDC, 3.5A, life test 5000 cycles

Product description

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Current:	3,5A
Operating voltage:	30V
Plug outside diameter:	5,5mm
Plug inside diameter:	2,5mm
Mounting:	THT
Type of connector:	Male
Connector:	Socket

All parameters

Manufacturer:: TACTRONIC Manufacturer part number:   Case style: Rys3.01c Datasheet

In stock:

3075 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2262	0,1247	0,0824	0,0688	0,0646

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

• Parameters
• Description

Current:	3,5A
Operating voltage:	30V
Plug outside diameter:	5,5mm
Plug inside diameter:	2,5mm
Mounting:	THT
Type of connector:	Male
Connector:	Socket

Detailed description

Gniazdo DC Ý5,5 x 2,5 mm do druku

Plastikowa obudowa Zakres pracy: 16V Prąd znamionowy: 2.5A Żywotność: 5000 cykli
