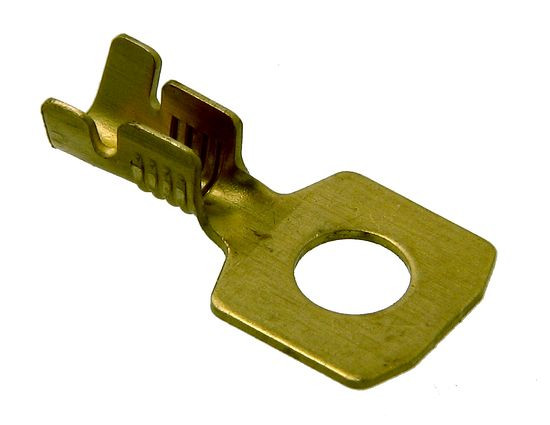

3852.06.00.9 IMP Ring terminal

Symbol Micros: ZS05

14250

ZS05

Contractor Symbol:

Case : Rys.ZS05

Datasheet

Technical drawing Add to favourites

non-insulated; square; M5, wire range: 1~2.5mm2; contact material: brass

Parameters

Wire width:	1~2.5mm2
Connector type:	Ring
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Brass

All parameters

Manufacturer:: IMP Manufacturer part number: 3852.06.00.9 RoHS Case style: Rys.ZS05

In stock:

1600 pcs.

Quantity of pcs.	5+	20+	100+	500+	2000+
Net price (EUR)	0,2344	0,1110	0,0621	0,0469	0,0426

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/2000 Quantity (multiple: 1)

- +

• Parameters

Wire width:	1~2.5mm2
Connector type:	Ring
Colour:	No colour (w/o insulation)
Type of connector:	Not insulated
Mounting:	Crimped
Contact material:	Brass
