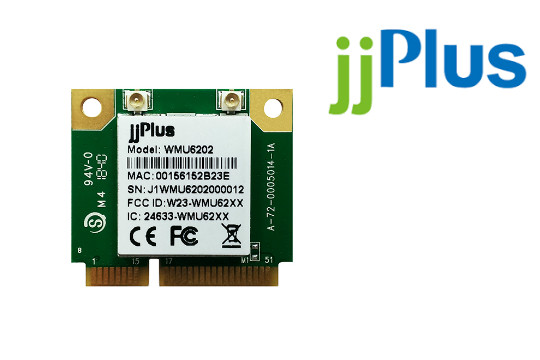

WiFi modules from jjPlus
2020-03-30
We encourage you to read the parameters of the modules (table below), as well as the content of the article about them, which appeared in the March issue of "Elektronika"(CLICK to see the article).
| Model | Chipset | Supported protocols | Connector | Supply voltage | Max power input | Antennae sockets | Temperatura pracy | Size |
|
|
QCA6174A-5 | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2/5.0 | M.2 | 3.3 V | 3.5 W | 2xU.FL | -40 do +85 °C | 22x30mm |
|
|
QCA6174A-5 | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2/5.0 | PCIexpress | 3.3 V | 3.5 W | 2xU.FL | -40 do +85 °C | 26,8x30mm |
|
|
RTL8822BU | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2 | USB typ A | 5V | 2 W | no | -20 do +55 °C | 60x25mm |
|
|
RTL8822BU | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2 | PCIexpress | 3.3V | 2 W | 2xU.FL | -20 do +70 °C | 30x26,8mm |
|
|
RTL8822BU | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2 | M.2 | 3.3V | 2 W | 2xU.FL | -20 do +70 °C | 22x30mm |
|
|
RTL8822BU | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2 | USB typ A | 5V | 2 W | 2xU.FL | -20 do +70 °C | 56x20mm |
|
|
RTL8822BU | Wi-Fi IEEE 802.11abg/n/ac+Bluetooth 4.2 | 4-pin | 5V | 2 W | 2xU.FL | -20 do +70 °C | 44,5x20mm |
