Inductors (results: 1508)
| Product | Cart |
Resistance
|
Current
|
Dimensions
|
Inductance
|
Operating temperature (range)
|
Manufacturer
|
Tolerance
|
Case
|
Inductor type
|
Tolerance
|
Mounting
|
Coil type
|
Test frequency
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

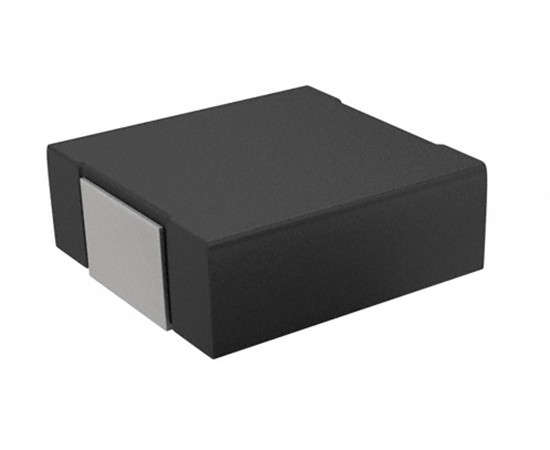

IHLP4040DZERR56M01 Vishay Power inductor
SMD power inductor; inductance: 0.56uH; 20%; current: 27.5A; resistance: 1.95mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
Rys.IHLP4040DZ
|
1,95mOhm | 27,5A | 10.16x10.16x4mm | 0,56uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP4040DZER1R0M01 Vishay Power inductor
SMD power inductor; inductance: 1uH; 20%; current: 17.5A; resistance: 4.1mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP4040DZ
|
0,0041 Ohm | 17,5A | 10.16x10.16x4mm | 1uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP4040DZER3R3M01 Vishay Power inductor
SMD power inductor; inductance: 3.3uH; 20%; current: 10A; resistance: 14.4mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP4040DZ
|
0,0144 Ohm | 10A | 10.16x10.16x4mm | 3,3uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP4040DZER4R7M01 Vishay Power inductor
SMD power inductor; inductance: 4.7uH; 20%; current: 9.5A; resistance: 16.5mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP4040DZ
|
0,0165 Ohm | 9,5A | 10.16x10.16x4mm | 4,7uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
LQW2UASR56F00L Murata Inductor
Inductor; SMD1008; 560nH; 1%; 0.400A; 1.33R; 25MHz; operating temperature: -55°C~125°C
|
|||||||||||||||
Rys.LQW2UAS
|
1,33 Ohm | 0,4A | 0,56uH | -55°C ~ 125°C | MURATA | 1% | 1008 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
LQW2UASR68F00L Murata Inductor
Inductor; SMD1008; 680nH; 1%; 0.400A; 1.47R; 25MHz; operating temperature: -55°C~125°C
|
|||||||||||||||
|
Rys.LQW2UAS
|
1,47Ohm | 0,4A | 680nH | -55°C ~ 125°C | MURATA | 1% | 1008 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
LQW2UASR82F00L Murata Inductor
Inductor; SMD1008; 820nH; 1%; 0.400A; 1.61R; 25MHz; operating temperature: -55°C~125°C
|
|||||||||||||||
|
Rys.LQW2UAS
|
1,61 Ohm | 0,4A | 0,82uH | -55°C ~ 125°C | MURATA | 1% | 1008 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP4040DZERR56M11 Vishay Power inductor
SMD power inductor; inductance: 0.56uH; 20%; current: 32A; resistance: 1.8mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP4040DZ
|
0,0018 Ohm | 32A | 10.16x10.16x4mm | 0,56uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
NLV25T-1R0J-PF TDK Inductor
Inductor; SMD1008; 1uH; 5%; 0.245A; 1.10R; 7,96MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
Rys.NLV25T
|
1,1 Ohm | 0,245A | 1uH | -40°C ~ 105°C | TDK | 5% | 1008 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP4040DZER1R8M11 Vishay Power inductor
SMD power inductor; inductance: 1.8uH; 20%; current: 17A; resistance: 5mR; dimensions: 10,16x10,16x4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP4040DZ
|
0,005 Ohm | 17A | 10.16x10.16x4mm | 1,8uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
NLV25T-100J-PF TDK Inductor
Inductor; SMD1008; 10uH; 5%; 0.155A; 3.50R; 2,52MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
|
Rys.NLV25T
|
3,5 Ohm | 0,155A | 10uH | -40°C ~ 105°C | TDK | 5% | 1008 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
AIML-1206-R10K Abracon Inductor
Inductor; SMD1206; 100nH; 10%; 0.250A; 0.25R; 25MHz; operating temperature: -55°C~125°C
|
|||||||||||||||
Rys.DLF1206
|
0,250 Ohm | 0,25A | 0,10uH | -55°C ~ 125°C | ABRACON | 10% | 1206 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050CEER1R0M01 Vishay Power inductor
SMD power inductor; inductance: 1uH; 20%; current: 24A; resistance: 3.5mR; dimensions: 12,9,x13,2x3,5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
Rys.IHLP5050CE
|
0,0035 Ohm | 24A | 12,9,x13,2x3,5mm | 1uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050CEER6R8M01 Vishay Power inductor
SMD power inductor; inductance: 6.8uH; 20%; current: 9A; resistance: 22mR; dimensions: 12,9,x13,2x3,5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050CE
|
0,022 Ohm | 9A | 12,9,x13,2x3,5mm | 6,8uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050CEER100M01 Vishay Power inductor
SMD power inductor; inductance: 10uH; 20%; current: 7A; resistance: 34mR; dimensions: 12,9,x13,2x3,5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050CE
|
34 mOhm | 7A | 12,9,x13,2x3,5mm | 10uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
NLV32T-R10J-EF TDK Inductor
Inductor; SMD1210; 150nH; 5%; 0.450A; 0.25R; 100MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
Rys.NLV32T
|
0,250 Ohm | 450mA | 150nH | -40°C ~ 105°C | TDK | 5% | 1210 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050EZER1R0M01 Vishay Power inductor
SMD power inductor; inductance: 1uH; 20%; current: 29A; resistance: 2.5mR; dimensions: 12.9x12.9x5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
Rys.IHLP5050EZ
|
0,0025 Ohm | 29A | 12.9x12.9x5mm | 1uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050EZER2R2M01 Vishay Power inductor
SMD power inductor; inductance: 2,2uH; 20%; current: 20A; resistance: 5.5mR; dimensions: 12.9x12.9x5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050EZ
|
0,0055 Ohm | 20A | 12.9x12.9x5mm | 2,2uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050EZER4R7M01 Vishay Power inductor
SMD power inductor; inductance: 4.7uH; 20%; current: 12A; resistance: 15mR; dimensions: 12.9x12.9x5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050EZ
|
0,015 Ohm | 12A | 12.9x12.9x5mm | 4,7uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050EZER6R8M01 Vishay Power inductor
SMD power inductor; inductance: 6.8uH; 20%; current: 11A; resistance: 18.5mR; dimensions: 12.9x12.9x5mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050EZ
|
0,0185Ohm | 11A | 12.9x12.9x5mm | 6,8uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
NLV32T-R56J-PF TDK Inductor
Inductor; SMD1210; 560nH; 5%; 0.450A; 0.55R; 25,2MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
|
Rys.NLV32T
|
550 mOhm | 450mA | 0,56uH | -40°C ~ 105°C | TDK | 5% | 1210 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050FDER470M8A Vishay Power inductor
SMD power inductor; inductance: 47uH; 20%; current: 5,6A; resistance: 79.6mR; dimensions: 12,9x13,259x6,4mm; operating temperature: -55°C ~ 180°C
|
|||||||||||||||
Rys.IHLP5050FD
|
79,6mOhm | 5,6A | 12,9x13,259x6,4mm | 47uH | -55°C ~ 180°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050FDERR47M01 Vishay Power inductor
SMD power inductor; inductance: 0.47uH; 20%; current: 41A; resistance: 1.2mR; dimensions: 12,9x13,2x6,4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
Rys.IHLP5050FD-01
|
0,0012 Ohm | 41A | 12.9x13.2x6,4mm | 0,47uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050FDER1R5M01 Vishay Power inductor
SMD power inductor; inductance: 1.5uH; 20%; current: 27A; resistance: 3mR; dimensions: 12,9x13,2x6,4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050FD-01
|
0,003 Ohm | 27A | 12.9x13.2x6,4mm | 1,5uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050FDER5R6M01 Vishay Power inductor
SMD power inductor; inductance: 5.6uH; 20%; current: 13.5A; resistance: 10mR; dimensions: 12,9x13,2x6,4mm; operating temperature: -55°C ~ 125°C
|
|||||||||||||||
|
Rys.IHLP5050FD-01
|
0,010 Ohm | 13,5A | 12.9x13.2x6,4mm | 5,6uH | -55°C ~ 125°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
NLCV32T-2R2M-PF TDK Inductor
Inductor; SMD1210; 2.2uH; 20%; 0.770A; 0.13R; 7,96MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
Rys.NLCV32T
|
0,13 Ohm | 770mA | 2,2uH | -40°C ~ 105°C | TDK | 20% | 1210 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
NLCV32T-2R2M-PFR TDK Inductor
Inductor; SMD1210; 2.2uH; 20%; 1.200A; 0.115R; 7,96MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
|
Rys.NLCV32T
|
0,115 Ohm | 1,2A | 2,2uH | -40°C ~ 105°C | TDK | 20% | 1210 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
NLV32T-3R3J-PF TDK Inductor
Inductor; SMD1210; 3.3uH; 5%; 0.260A; 1.20R; 7,96MHz; operating temperature: -40°C~105°C
|
|||||||||||||||
|
Rys.NLV32T
|
1,2 Ohm | 0,26A | 3,3uH | -40°C ~ 105°C | TDK | 5% | 1210 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
|
IHLP5050FDER2R2M5A Vishay Power inductor
SMD power inductor; inductance: 2.2uH; 20%; current: 25.5A; resistance: 3.67mR; dimensions: 12,9x13,462x6,4mm; operating temperature: -55°C ~ 155°C
|
|||||||||||||||
|
Rys.IHLP5050FD
|
3,67mOhm | 25,5A | 12,9x13,462x6,4mm | 2,2uH | -55°C ~ 155°C | VISHAY | Power | 20% | SMD | ||||||
|
|
Item available on a request
|
||||||||||||||
|
1277AS-H-6R8M Murata Inductor
Inductor; SMD1210; 6.8uH; 20%; 1.200A; 0.276R; 1MHz; operating temperature: -40°C~85°C
|
|||||||||||||||
|
Rys.DFE322512C
|
0,276Ohm | 1,2A | 6,8uH | -40°C ~ 85°C | MURATA | 20% | 1210 | SMD | |||||||
|
|
Item available on a request
|
||||||||||||||
