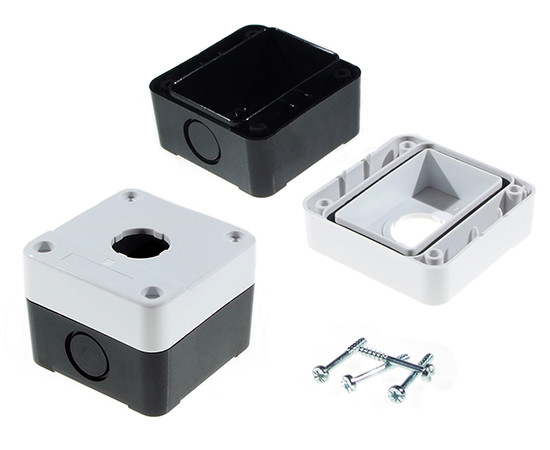

Button box; white-black

Symbol Micros: PRZ LAY5-BE01

216478

PRZ LAY5-BE01

Contractor Symbol:

Case : Rys.LAY5-BE01

Datasheet

Technical drawing Add to favourites

Button box; white-black; plastic; IP40; IP54; 1 hole; diameter: 22mm; current: 10A; dimensions: 68x68x51mm

Parameters

Dimensions:	68x68x51mm
Button colour:	N/A
Contacts configuration:	N/A
Accessories type:	Case
Diameter:	22mm
Illumination:	N/A
Button shape:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	68x68x51mm
Button colour:	N/A
Contacts configuration:	N/A
Accessories type:	Case
Diameter:	22mm
Illumination:	N/A
Button shape:	N/A
Number of holes:	1
IP rating:	IP40/54
Button type:	N/A
Number of buttons:	0
Manufacturer:	N/A
