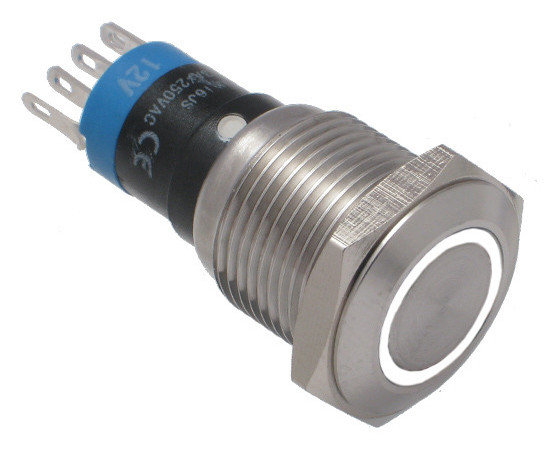

Vandal proof push button switch; W19F10EW24/S

Symbol Micros: PRZ W19F10EW24/S

500506

PRZ W19F10EW24/S

Contractor Symbol:

Case : Rys.W19F10EWx/S

Datasheet

Technical drawing Add to favourites

19mm; momentary; 1NO; stainless steel; connectors 2,0x0,5mm, front shape-flat; illuminated LED 24V; ring; white; 3A; 250VAC; IP65; electrical life: 200.000 cycles

Parameters

Contacts rating:	3A/250VAC
Backlight colour:	White
Switching method:	1NO
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	19mm

All parameters

Manufacturer:: HAN Manufacturer part number:   Case style: Rys.W19F10EWx/S

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	30+	80+
Net price (EUR)	4,4997	3,9950	3,6908	3,5398	3,4620

Add to comparison tool Add inquiry (RFQ)

Packaging:
80 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	3A/250VAC
Backlight colour:	White
Switching method:	1NO
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	N/A
Mounting hole diameter:	19mm
Leads:	Connectors (2,0x0,5mm)
Illumination:	Edge
Illimination voltage:	24V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
