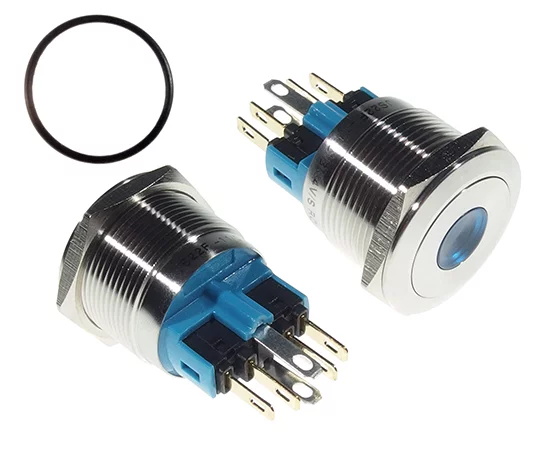

Vandal proof push button switch; W22F11DB24/S

Symbol Micros: PRZ W22F11DB24/Sz

249691

PRZ W22F11DB24/Sz

Contractor Symbol:

Case : Rys.W22F11DB24/S

Datasheet

Technical drawing Add to favourites

22mm; momentary; 1NO1NC; stainless steel; pin terminals; front shape-flat; illuminated LED 24V; dot; blue; 5A; IP67; electrical life: 40.000h

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Backlight colour:	Blue
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	22mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Backlight colour:	Blue
Switching method:	1NO1NC
Button shape:	Flat
IP rating:	IP67
Contacts configuration:	N/A
Leads:	For soldering
Mounting hole diameter:	22mm
Illumination:	Point
Illimination voltage:	24V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	N/A
Type of switch:	Vandal-resistant
