AN110 (replacement for: GSM-ANT110)
Symbol Micros:
RF AN110
Case : Rys.AN110

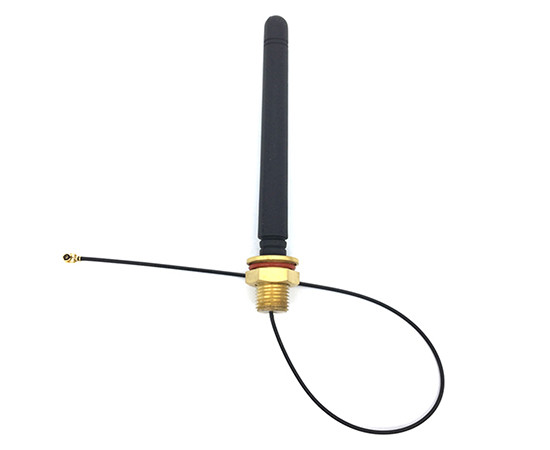

GSM Antenna, 880÷960/1710÷2170MHz, gain 2.0dBi, dimensions L×Φ96.2×16.1mm IPEX connector, screw mount, RG178 3m cable
Parameters
| Dimensions: | 96,2x16,1mm |
| Frequency range: | 880~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Pipe |
| Type of connector: | IPEX |
Manufacturer:: import
Manufacturer part number: AN110 RoHS
Case style: Rys.AN110
In stock:
20 pcs.
| Quantity of pcs. | 1+ | 5+ | 20+ | 100+ | 300+ |
|---|---|---|---|---|---|
| Net price (EUR) | 2,8131 | 2,1627 | 1,9208 | 1,7964 | 1,7588 |
| Dimensions: | 96,2x16,1mm |
| Frequency range: | 880~960/1710~2170MHz |
| Peak gain: | 2,0dBi |
| Antenna type: | GSM |
| Operating temperature (range): | -40°C ~ 85°C |
| Antenna shape: | Pipe |
| Type of connector: | IPEX |
| Mounting: | Screw |
| Cable type: | RG178 |
| Polarisation: | Linear |
| Cable length: | 3m |
| Impedance: | 50Ohm |
Detailed description
Typ produktu: Antena GSM
Częstotliwość: 880÷960/1710÷2170MHz
Zysk energetyczny: 2.0dBi
Wymiary zewnętrzne: L×Φ 96.2×16.1mm
Typ złącza: IPEX
Montaż: przykręcany
Przewód: RG178 3m
Polaryzacja: liniowa
V.S.W.R: <2.0
Impedancja: 50Ω
Temperatura pracy: -40÷85°C
