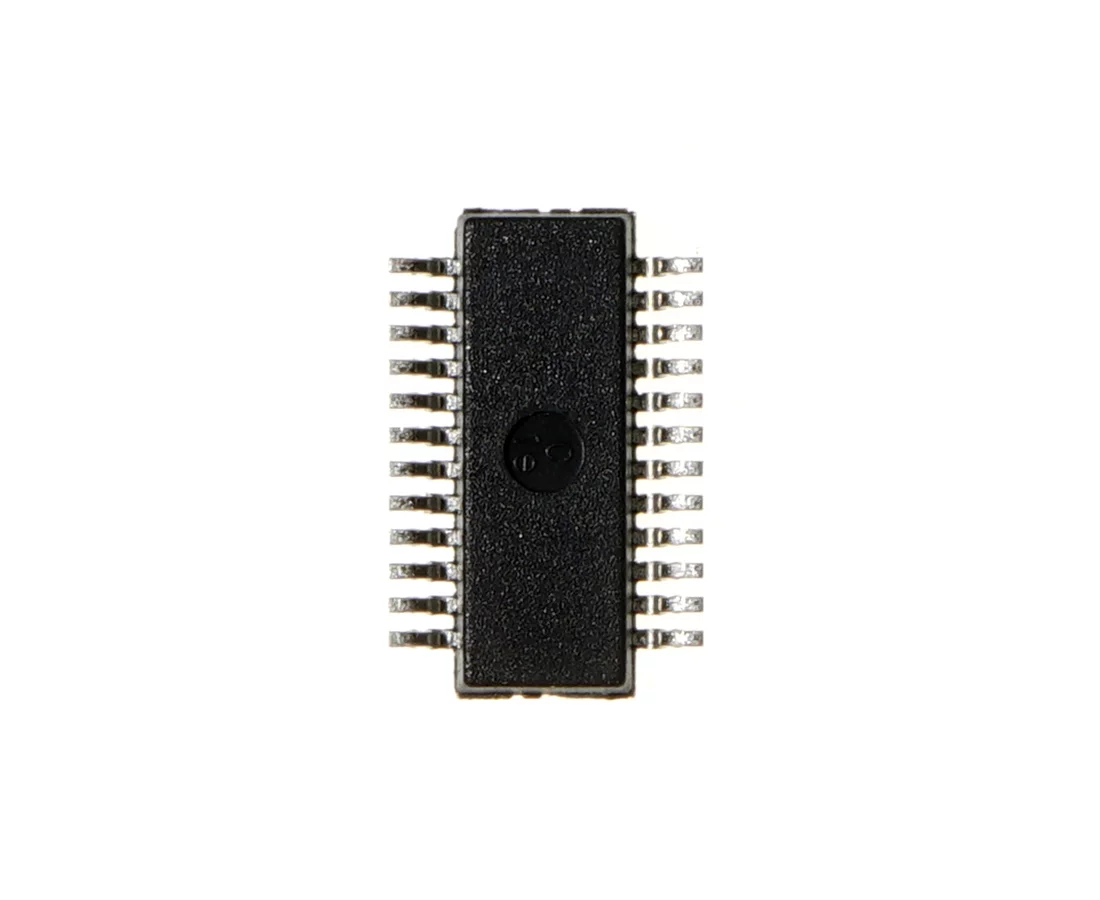

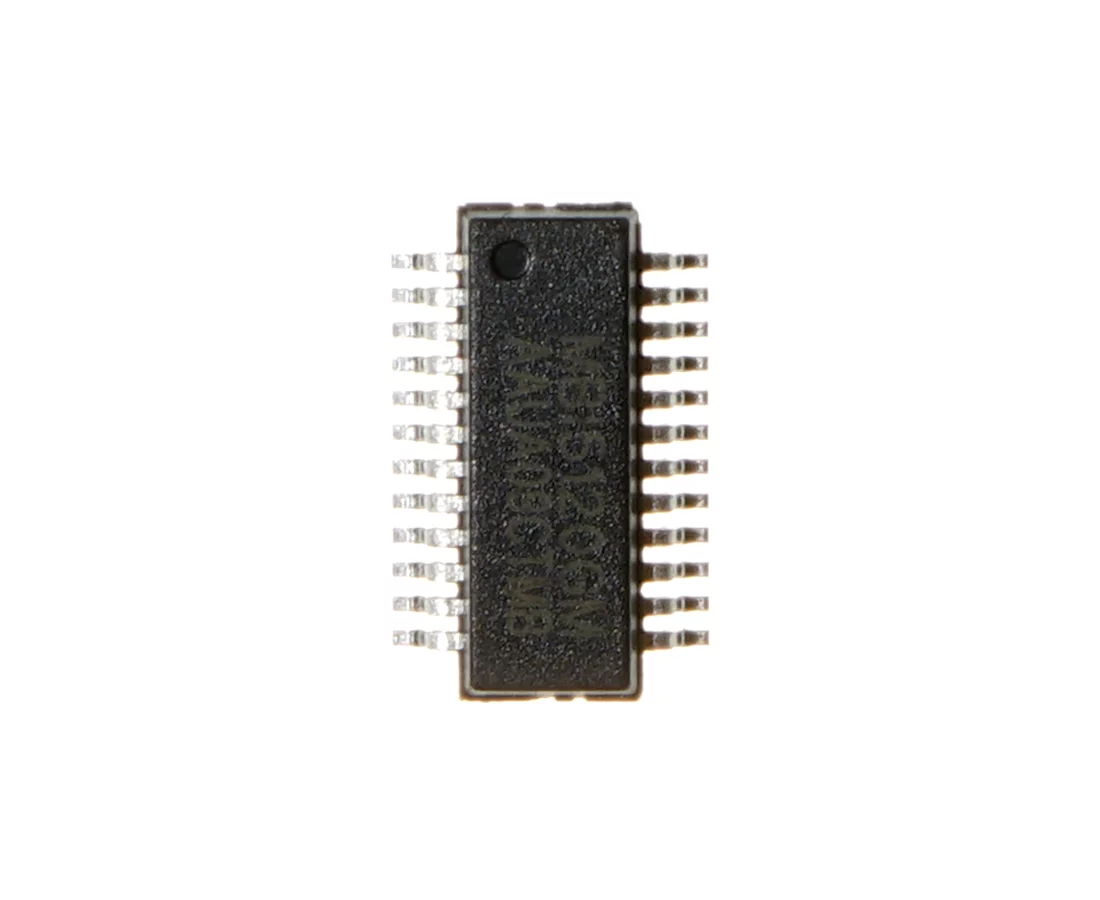

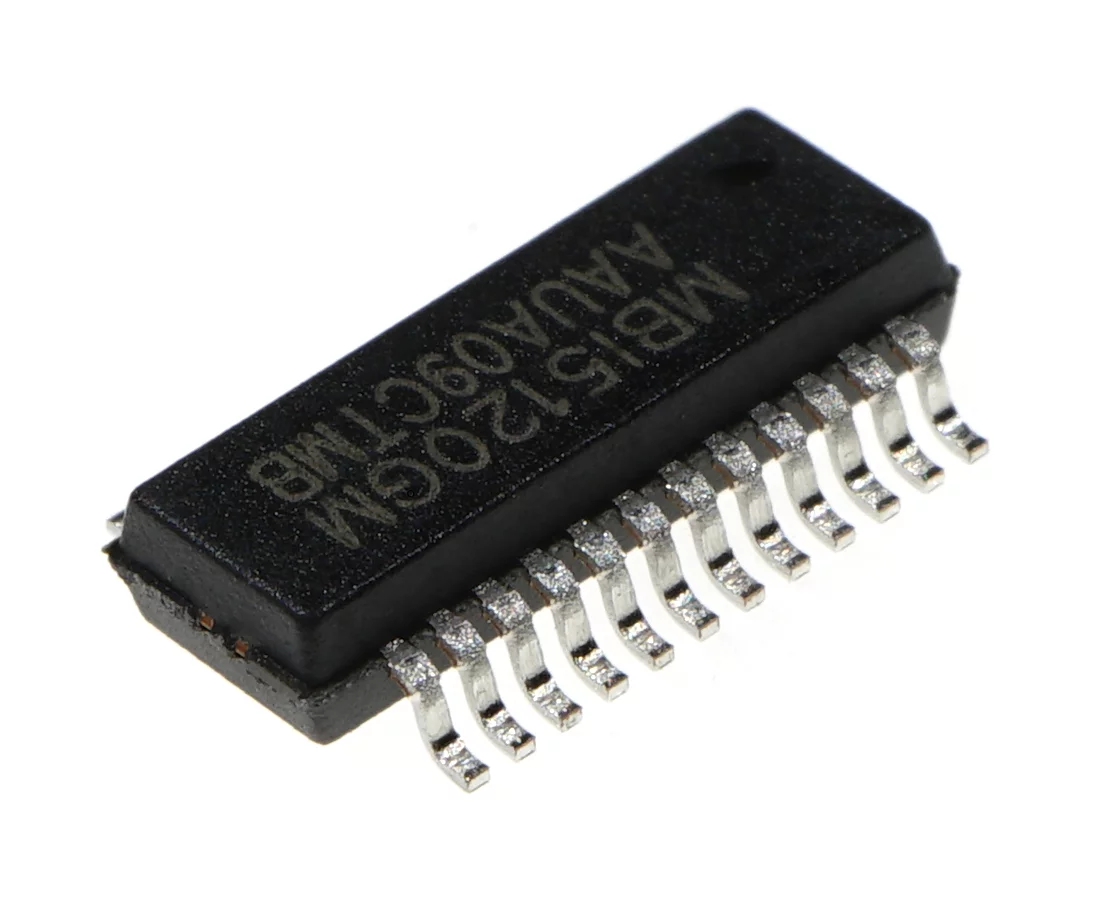

MBI5120GM-B

Symbol Micros: UIMBI5120gm

344879

UIMBI5120gm

Contractor Symbol:

Case : mSSOP24

Datasheet

Technical drawing Add to favourites

LED Display Driver 16 channels, Iout 3÷25mA @ 5V, Vds 17V max, fCLK 25MHz, Vdd 3.0÷5.5V, -40÷85°C

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Controller type:	SIPO Shift Register
Driver application:	LED Matrix
Brightness control:	PWM 14-/16-bit
Number of channels:	16
Output current / canal [mA]:	3mA ~ 25mA @ 5V
Output voltage:	17V
Supply voltage range:	3V ~ 5,5V

All parameters

Manufacturer:: MACROBLOK Manufacturer part number: MBI5120GM-B RoHS Case style: mSSOP24 Datasheet

In stock:

99 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,3773	0,2073	0,1629	0,1509	0,1447

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Controller type:	SIPO Shift Register
Driver application:	LED Matrix
Brightness control:	PWM 14-/16-bit
Number of channels:	16
Output current / canal [mA]:	3mA ~ 25mA @ 5V
Output voltage:	17V
Supply voltage range:	3V ~ 5,5V
Operating temperature (range):	-40°C ~ 85°C
Case:	mSSOP24
