H5150-20PDW000R HSM ATX Connector

Symbol Micros: Z KWF5150-20

15112

Z KWF5150-20

Contractor Symbol:

Case : Rys.H5150-20

Datasheet

Technical drawing Add to favourites

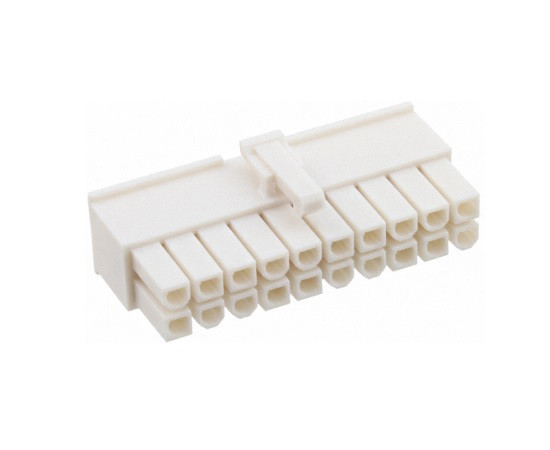

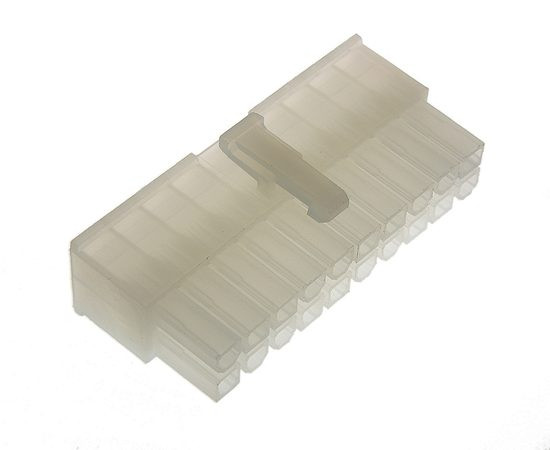

Plug; female; 20pin (2x10); straight; pitch: 4,2mm; for cable; with key; dual row; white color eqiv. MRX557-20

Any questions? We will be happy to answer.
Write sales // micros.com.pl or call: +48 785 054 437

Parameters

Type of pin configuration:	2x10
Number of pins:	20
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female

All parameters

Manufacturer:: HSM Manufacturer part number: H5150-20PDW000R RoHS Case style: Rys.H5150-20

In stock:

4413 pcs.

Quantity of pcs.	3+	10+	50+	250+	1500+
Net price (EUR)	0,3635	0,2393	0,1716	0,1484	0,1399

Add to comparison tool Add inquiry (RFQ)

Packaging:
250 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x10
Number of pins:	20
Connector:	Plug
Manufacturer:	HSM
Spatial orientation:	Straight
Mounting:	Cables
Type of connector:	Female
